Why We Chose WebSocket for Our Real-Time Voice Stack

01 — Problem Shape

What we're actually building

Before picking a transport protocol, it helps to be precise about the data flow. This is not browser-to-browser calling. There is no peer on the other side. The product shape is:

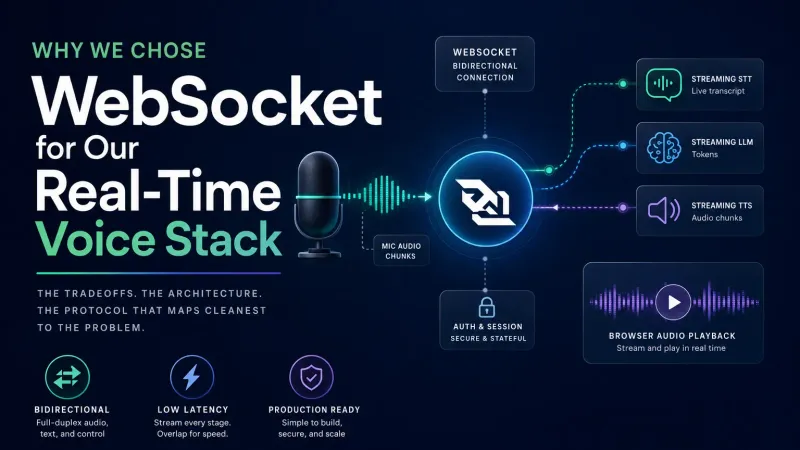

Browser microphone -> Your server -> AI services -> Browser audio playback

The key insight: this is a backend-mediated, bidirectional stream. The browser sends audio chunks up. The server sends transcripts, LLM tokens, and TTS audio chunks back. WebSocket maps directly to this shape.

WebRTC is designed for peer media. We don't have a browser peer or call room — we have a backend AI pipeline.

---

02 — Transport Comparison

Three protocols, one winner

We evaluated WebSocket, SSE, and WebRTC. Here's how they stack up for the specific job of "send mic audio to a server and stream AI output back."

SSE is great for streaming LLM text tokens back to a browser — but it's one-directional. You'd need a second channel for audio upload, which defeats the simplicity. WebRTC adds signaling, ICE negotiation, and STUN/TURN overhead that only pays off when you need actual peer media or are already committed to a WebRTC backend like LiveKit or mediasoup.

Capability matrix

---

03 — Audio Capture

Use browser media capture APIs regardless

Even though the transport is WebSocket, the browser-side capture story is unchanged. getUserMedia is part of the Media Capture and Streams API — shared with WebRTC, but not tied to it as a transport. Always use it with the full audio constraint set. You get browser-native echo cancellation, noise suppression, and auto gain control for free — before a single byte hits your backend.

Then use MediaRecorder or an AudioWorklet to emit small Opus-encoded chunks over your WebSocket connection.

Safari note: audio/webm;codecs=opus is well-supported in Chrome and Firefox. Safari may require audio/mp4 as a fallback — check MediaRecorder.isTypeSupported() before committing to a codec.

Chunking recommendations

---

04 — End-to-End Production Pipeline

The full flow from speech to response:

Sequence across services

---

05 — Latency

Overlap every stage

The fastest-feeling voice assistants don't wait for stage N to finish before starting stage N+1. They overlap. STT starts processing before the user finishes speaking. The LLM can start from stable partials or final utterance segments — kicking off before the full transcript is confirmed. TTS starts synthesizing before the LLM completes. Audio starts playing before TTS finishes.

                 0ms        500ms       1000ms      1500ms      2000ms
                 |           |           |           |           |
User speech      ████████████████████████░░░░░░░░░░░░░░░░░░░░░░░░
Capture + chunk  ████████████████████████████░░░░░░░░░░░░░░░░░░░░
Streaming STT    ░░██████████████████████████████░░░░░░░░░░░░░░░░
Streaming LLM    ░░░░░░░░░░░░░░░░░░██████████████████░░░░░░░░░░░░
Streaming TTS    ░░░░░░░░░░░░░░░░░░░░░░░░████████████████░░░░░░░░
Audio playback   ░░░░░░░░░░░░░░░░░░░░░░░░░░░░████████████████████

The anti-pattern to avoid:

record full audio -> transcribe full audio -> generate full answer -> synthesize full answer -> play audio

Each step may be individually fast, but the compounding wait time feels broken.

---

06 — Message Protocol

A typed WebSocket protocol

Use a single persistent WebSocket connection with typed message envelopes. This keeps your backend stateful per-session and makes barge-in handling straightforward.

Control and text frames are sent as JSON. Audio is sent as raw binary frames — don't try to embed binary data inside a JSON envelope. A practical split:

• JSON frames — all control messages (session_start, audio_end, interrupt) and server-to-browser text events
• Binary frames — audio_chunk (mic data up) and tts_audio_chunk (TTS audio down); use a small binary header or a parallel JSON message to carry metadata if needed

---

07 — When to Pick WebRTC

The WebRTC exceptions

There are legitimate reasons to choose WebRTC:

If none of those are true, WebSocket is the simpler production path. For reference, here's what the WebRTC backend stack looks like:

---

08 — Final Decision

Decision tree

The stack

getUserMedia capture · WebSocket transport · Streaming STT · Streaming LLM · Streaming TTS · Browser audio queue · VAD turn-taking

Use WebSocket for real-time production transport, use getUserMedia for browser mic quality, add VAD for turn-taking, and use streaming STT/LLM/TTS services for true real-time voice.

---
